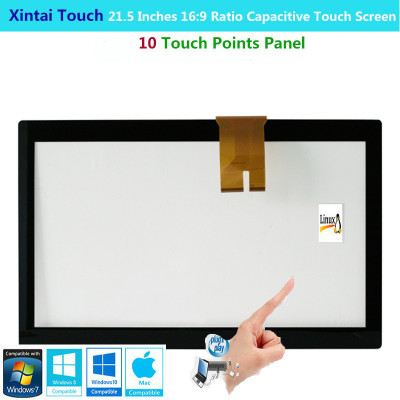

Xintai Touch 21.5 Inches 16:9 Ratio Projected Capactive Touch Screen Panel With 10 Touch Points Plug&Play
1. Product Specification
Structure | G+G (Cover Glass+OCA+ITO ) |
Color | black silk print+transparent glass |
Response speed | ≤5ms |
Touch accuracy | <2.5mm |
Move tolerance | <10% |
Resolution | 25 pixel/minutes |
Light transmittance | ≥85% |
Glass haze value | ≤3% |
Input method | finger, capacitive touch pen |
Output method | Inductive coupling capacitance output |
Touch times on theory | no limitation |
Interface type | USB & COM,default for USB interface |
Certification | RoHS |
Scan frequency | 200Hz | |
USB2.0 | Terminal type | A type USB |
Communication interface | USB-D+ and USB-D- | |
Transmission rate | 12Mbps | |
Signal | +5V,D-,D+,GND | |
Power supply | USB take power | |
Power supply voltage | DC+5V±5% | |
Working currency | <200mA |
Item | Specification |
Temperature range | Operating temperature:-20°~70° |
Storage temperature:-30°~80° | |
Relative humidity | Operating humidigy:45%~ 85% RH, no condensation |
Storage humidity:45%~ 85% RH, no condensation | |
Light resistance | Light resistance for all angles |
Item | Projected capacitive touch screen |
Normal OS | Win XP/Win 7/Win 8/Win CE/Android/Linux/Mac |
Linux | Generally support single touch, multi points supported after kernel revised |
Android | Single point: no need to revise kernel |
Multi points touch: kernel version above 2.6.31 and need revising kernel technology | |
Serial port | Other OS:use it after the calibration on Win xp , Win7 |
Calibration | Win XP,Win 7,Win 8 :calibrate directly |
Other OS:use it after the calibration on Win xp , Win7 | |
Horizontal/vertical screen | Switch automatically |
Product Size List:
Warranty:
We offer 1 year free warranty for hardware.
Tax and Duties:
1、 For customers from South America Market, we need you provide Tax Number before shipment.
Brazil-CNPJ/CPF, Chile-RUT number, Argentina-CUIT number, Colombia-NIT number, Peru-IVA number, Venezuela-RIF number
2、The goods price is not including the destination tariffs Different coutries have different customs tariffs, it is buyer's responsibility.
Shipment and Payment:
1、For Payment---------we accept Western Union, TT, Paypal.
2、 BY DHL/FEDEX/UPS------(It's commonly Takes 5-7 working days to deliver to destination if everything go well
without customs clearance problem).
3. By EMS --------(normally takes 7-15 working days ------------It's shipping to Russia and Ukaine).
4. By Russia-Line--------(It will take about18-25 days shipping to Russia).
5. In commonly Country (except russia,Ukaine,Brazil)------- below 43 inch (including 43 inch) we will choose DHL to
deliver the package;above 43 inch will choose fedex or ups,please kindly know.
6. Brazil Customer --------
① Brazil customer should provide CPF/CPNJ tax number to us,then shipment can be arranged,It's used for
customs clearance
② Brazil customer should tell us what value should be decalred for customs clearance
As brazil customs clearance problems.
Shipping Method:
We ship in wooden or HoneyComb Carton package to protected the touch panel glass
1. Touch Panel + EETI Controller
2. With Glass
3. In Wooden or HoneyComb Carton Package Shipping
Facotry Produced and High Quality Guarantee
- Brand Name
- Xintai Touch
- Interface Type
- USB
USB interface - Package
- Yes
- Type
- Capacitive
- Products Status
- STOCK
- Model Number
- XT-PCAP-21.5
- Display Size
- 21.5 Inches
- Response Speed
- less than 5ms
- Input Method
- finger, capacitive touch pen
- Item
- 21.5 inch projected capacitive touch screen
- structure
- G+G
- Color
- black silk print+transparent glass
- Touch accuracy
- less than 22.5mm
- Resolution
- 25 pixel per minutes
- Light transmittance
- more than 85%
- Touch times on theory
- no limitation
