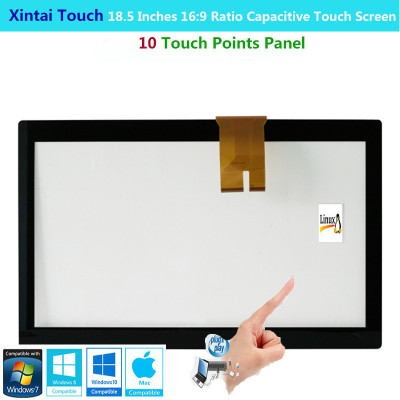

Xintai Touch 18.5 Inches 16:9 Ratio Projected Capactive Touch Screen Panel With 10 Touch Points Plug&ampPlay

Xintai Touch 18.5 Inches 16:9 Ratio Projected Capactive Touch Screen Panel With 10 Touch Points Plug&Play
$94.50 $105.00 - $10.50 $94.50 (tax excl.)
Security policy
SSL and higher firewall provided the data security
Transmission policy
Commonly we use Fedex and UPS shipping out the package Then the package can be delivery soon
Return policy
To initiate a return, you can contact us via Email. If your return is accepted, please let us know

Xintai Touch 18.5 Inches 16:9 Ratio Projected Capactive Touch Screen Panel With 10 Touch Points Plug&Play



1. Product Specification



specification



2.Main spec and parameters

Structure G+G   (Cover Glass+OCA+ITO )
Color black silk print+transparent glass
Response speed ≤5ms
Touch accuracy <2.5mm
Move tolerance <10%
Resolution   25 pixel/minutes
Light transmittance ≥85%
Glass haze value ≤3%
Input method finger, capacitive touch pen
Output method Inductive coupling capacitance output
Touch times on theory   no limitation
Interface type USB & COM,default for USB interface
Certification RoHS


3. Electrical characteristics

Scan frequency  200Hz
 USB2.0 Terminal type A type USB
Communication interface USB-D+ and  USB-D-
Transmission rate 12Mbps
Signal +5V,D-,D+,GND
Power supply   USB take power
Power supply voltage DC+5V±5
Working currency   <200mA


4. Environment characteristics

Item Specification
Temperature range Operating temperature:-20°~70°
Storage temperature:-30°~80°
Relative humidity Operating humidigy:45%~ 85% RH,  no condensation
Storage humidity:45%~ 85% RH,  no condensation
Light resistance Light resistance for all angles


5. System support

Item Projected capacitive touch screen
Normal OS Win XP/Win 7/Win 8/Win CE/Android/Linux/Mac
Linux Generally support single touch, multi points supported after kernel revised
Android Single point: no need to revise kernel
Multi points touch: kernel version above 2.6.31 and need revising kernel technology
Serial port Other OS:use it after the calibration on Win xp , Win7
Calibration Win XP,Win 7,Win 8 :calibrate directly
 Other OS:use it after the calibration on Win xp , Win7
Horizontal/vertical screen Switch automatically



Product Size List:

logo-sizelist





Warranty:





We offer 1 year free warranty for hardware.





Tax and Duties:



1、 For customers from South America Market, we need you provide Tax Number before shipment.



Brazil-CNPJ/CPF, Chile-RUT number, Argentina-CUIT number, Colombia-NIT number, Peru-IVA number, Venezuela-RIF number



2、The goods price is not including the destination tariffs  Different coutries have different customs tariffs, it is buyer's responsibility.







Shipment and Payment:



1、For Payment---------we accept Western Union, TT, Paypal.



2、 BY DHL/FEDEX/UPS------(It's commonly Takes 5-7 working days to deliver to destination if everything go well



without customs clearance problem).



3. By EMS --------(normally takes 7-15 working days ------------It's shipping to Russia and Ukaine).



4. By Russia-Line--------(It will take about18-25 days shipping to Russia).



5. In commonly Country (except russia,Ukaine,Brazil)------- below 43 inch (including 43 inch) we will choose DHL to



deliver the package;above 43 inch will choose fedex or ups,please kindly know.



6. Brazil Customer --------



①  Brazil customer should provide CPF/CPNJ tax number to us,then shipment can be arranged,It's used  for



customs clearance



②  Brazil customer should tell us what value should be decalred for customs clearance



As brazil customs clearance problems.



shipping





Shipping Method:



We ship in wooden or HoneyComb Carton package to protected the touch panel glass



1. Touch Panel + EETI Controller



2. With Glass



3. In Wooden or HoneyComb Carton Package Shipping



pacap_packed





Facotry Produced and High Quality Guarantee

pacap_factory



2251832781298574
95 Items
Brand Name
Xintai Touch
Interface Type
USB
USB interface
Package
Yes
Type
Capacitive
Products Status
STOCK
Model Number
XT-PCAP-18.5
Display Size
18.5 Inches
Response Speed
less than 5ms
Input Method
finger, capacitive touch pen
Item
18.5 inch projected capacitive touch screen
structure
G+G
Color
black silk print+transparent glass
Touch accuracy
less than 22.5mm
Resolution
25 pixel per minutes
Light transmittance
more than 85%
Touch times on theory
no limitation
