Xintai Touch Shipping by Russia-Air 10PCS 21.5 Inches 16:9 Ratio Projected Capactive Touch Screen Panel With 10 Touch Points

$976.50 $1,085.00 - $108.50 $976.50 (tax excl.)

Security policy
SSL and higher firewall provided the data security

Transmission policy
Commonly we use Fedex and UPS shipping out the package Then the package can be delivery soon

Return policy
To initiate a return, you can contact us via Email. If your return is accepted, please let us know

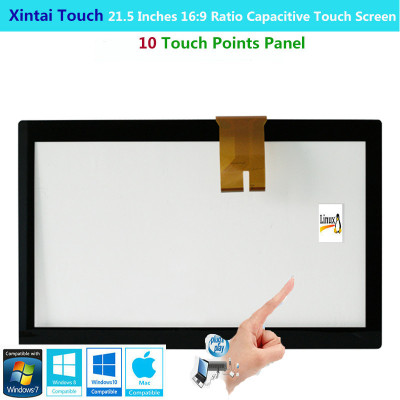

Xintai Touch 21.5 Inches 16:9 Ratio Projected Capactive Touch Screen Panel With 10 Touch Points Plug&Play

1. Product Specification


2.Main spec and parameters

Structure	G+G (Cover Glass+OCA+ITO )
Color	black silk print+transparent glass
Response speed	≤5ms
Touch accuracy	＜2.5mm
Move tolerance	＜10%
Resolution	25 pixel/minutes
Light transmittance	≥85%
Glass haze value	≤3%
Input method	finger, capacitive touch pen
Output method	Inductive coupling capacitance output
Touch times on theory	no limitation
Interface type	USB & COM,default for USB interface
Certification	RoHS

3. Electrical characteristics

4. Environment characteristics

Item	Specification
Temperature range	Operating temperature:-20°~70°
Temperature range	Storage temperature:-30°~80°
Relative humidity	Operating humidigy:45%~ 85% RH, no condensation
Relative humidity	Storage humidity:45%~ 85% RH, no condensation
Light resistance	Light resistance for all angles

5. System support

Item	Projected capacitive touch screen
Normal OS	Win XP/Win 7/Win 8/Win CE/Android/Linux/Mac
Linux	Generally support single touch, multi points supported after kernel revised
Android	Single point: no need to revise kernel
Android	Multi points touch: kernel version above 2.6.31 and need revising kernel technology
Serial port	Other OS:use it after the calibration on Win xp , Win7
Calibration	Win XP,Win 7,Win 8 :calibrate directly
Calibration	Other OS:use it after the calibration on Win xp , Win7
Horizontal/vertical screen	Switch automatically

Product Size List：

Warranty:

We offer 1 year free warranty for hardware.

Tax and Duties:

1、 For customers from South America Market, we need you provide Tax Number before shipment.

Brazil-CNPJ/CPF, Chile-RUT number, Argentina-CUIT number, Colombia-NIT number, Peru-IVA number, Venezuela-RIF number

2、The goods price is not including the destination tariffs Different coutries have different customs tariffs, it is buyer's responsibility.

Shipment and Payment:

1、For Payment---------we accept Western Union, TT, Paypal.

2、 BY DHL/FEDEX/UPS------(It's commonly Takes 5-7 working days to deliver to destination if everything go well

without customs clearance problem).

3. By EMS --------(normally takes 7-15 working days ------------It's shipping to Russia and Ukaine).

4. By Russia-Line--------(It will take about18-25 days shipping to Russia).

5. In commonly Country (except russia,Ukaine,Brazil)------- below 43 inch (including 43 inch) we will choose DHL to

deliver the package;above 43 inch will choose fedex or ups,please kindly know.

6. Brazil Customer --------

① Brazil customer should provide CPF/CPNJ tax number to us,then shipment can be arranged,It's used for

customs clearance

② Brazil customer should tell us what value should be decalred for customs clearance

As brazil customs clearance problems.

Shipping Method:

We ship in wooden or HoneyComb Carton package to protected the touch panel glass

1. Touch Panel + EETI Controller

2. With Glass

3. In Wooden or HoneyComb Carton Package Shipping

Facotry Produced and High Quality Guarantee
