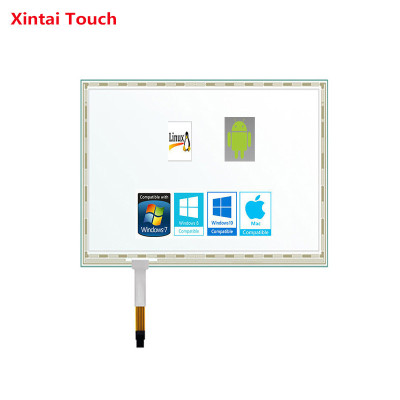

Xintai Touch 10.4 Inches 5 Wires Resistive Touch Screen Panel USB Touch Screen+USB Controller Board
SSL and higher firewall provided the data security
Commonly we use Fedex and UPS shipping out the package Then the package can be delivery soon
To initiate a return, you can contact us via Email. If your return is accepted, please let us know
Xintai Touch 10.4 Inches 5 Wires Resistive Touch Screen Panel USB Touch Screen+USB Controller Board
5 Wire Resistive Touch Screen Specification
With the best materials used and exacting standards of quality assurance, Lanny is committed to customer satisfaction in the Highest Quality Material, Large size,High light transmittance ,Free of Maintaining, Complete Reliability,Superior Product Durability,Design Flexibility, World-Class Service and Support:
Features
1.Sensitive to touch
2.1 year warranty
3.Transpanrency≥78%
4.Thin thickness,act quick
5.High durability and easy for using
6.Quick response time<10ms
7.High range of temperature
8.CE,ROHS certification
Applications
Industry control system
Indoor/outdoor kiosks
Advertisement merchine
Automobile DVD navigation
Medical and healthcare kiosks
ATM
PC
GPS
Self service termal
Gas station
Technical specification
Available size |
10.4"-22" |
Touch method |
finger,pen or any opaque objects |
Aspect ration |
4:3 |
Response speed |
<10ms |
Transparancy |
≥78% |
Operating Tem/Hum |
-10 - +60 20---85% RH |
Storage Tem/Hum |
-20 - +70 20---95% RH |
Insulation Resistance |
≥20MΩ /25V(DC) |
Operating Voltage |
DC3V-7V( |
Operating Current |
35mA max |
Surface Disposal |
Anti Glare;Anti-Newton ring(optional) |
Finger Touch Life |
≥35millions times |
Surface Resistance |
200Ω~500Ω |
Interface |
RS232 or USB |
OS compatible |
Windows 2000/XP/Vista, Linux/win7/win8 |
Certifications |
ROHS,CE,FCC |
Product Specification
Product Specification |
|||
Product Name: |
5 Wires Resistive |
Model: |
XT-RTS-5W |
Ratio: |
16:9 |
Resolution: |
4096 X 4096 |
Common Size: |
10.4"-24" |
Touch Points: |
Single Touch |
Construct: |
ITO FOIL+ ITO |
Thickness: |
2.3 mm |
Chips: |
EETI,China Chips |
Interface: |
USB 2.0/R232 |
Hardness: |
3H |
Touch Life: |
35 Million Times |
Operate Voltage: |
2.5V to 5V DC |
Work Temperature: |
-20°C- 70°C |
Storage Temperature: |
-30°C- 80°C |
Warranty: |
1 year |
Certificate: |
CE,FCC,RoHS |
Operation System: |
Windows,Android,Linux |
Size List
![H02ffe817dccd4998a56b777adb347d73I.png](https://ae01.alicdn.com/kf/H02ffe817dccd4998a56b777adb347d73I.png)
Warranty:
We offer 1 year free warranty for hardware.
Tax and Duties:
1、 For customers from South America Market, we need you provide Tax Number before shipment.
Brazil-CNPJ/CPF, Chile-RUT number, Argentina-CUIT number, Colombia-NIT number, Peru-IVA number, Venezuela-RIF number
2、The goods will be delcared with low value on the invoice, purpose is to reduce your tariffs, but our price is not
including the destination tariffs Different coutries have different customs tariffs, it is buyer's responsibility.
Shipment and Payment:
1、For Payment---------we accept Western Union, TT, Paypal.
2、 BY DHL/FEDEX/UPS------(It's commonly Takes 5-7 working days to deliver to destination if everything go well
without customs clearance problem).
3. By EMS --------(normally takes 7-15 working days ------------It's shipping to Russia and Ukaine).
4. By Russia-Line--------(It will take about18-25 days shipping to Russia).
5. In commonly Country (except russia,Ukaine,Brazil)------- below 43 inch (including 43 inch) we will choose DHL to
deliver the package;above 43 inch will choose fedex or ups,please kindly know.
6. Brazil Customer --------
① Brazil customer should provide CPF/CPNJ tax number to us,then shipment can be arranged,It's used for
customs clearance
② Brazil customer should tell us what value should be decalred for customs clearance
As brazil customs clearance problems.
Shipping Method:
We ship in tube package to save shipping cost. We also can ship it with glass as well. Contact us.
1. Disassembly
2. Without Glass
3. In tube Shipping
Facotry Produced and High Quality Guarantee
- Brand Name
- Xintai Touch
- Interface Type
- USB
- Package
- Yes
- Type
- Resistive
- Products Status
- STOCK
- Model Number
- XT-RS-RS104-5W
- Display Size
- 10.4inch
- is_customized
- Yes
- General Size
- 15 inch to 65 inch
- Linearity Error
- 1.5mm
- Response Speed
- 15ms
- Input Method
- Finger or gloved hand (rubber ,cloth or leather)
- Minimum Touch Object
- 2.5 mm X 2.5 mm
- Light Transmission
- 92%
- Agency Approvals
- CE, FCC, Rohs
- Operation System
- windows 7, windows8, Android, Linux
- Item
- 18.5 Inch Resistive Touch Screen
- Certification
- CE
- Origin
- CN(Origin)
