Xintai Touch 32 Inches 10 Touch Points Capacitive Multi Touch Foil/Interactive Touch Film For Touch Kiosk/Table Etc Plug & Pl
SSL and higher firewall provided the data security
Commonly we use Fedex and UPS shipping out the package Then the package can be delivery soon
To initiate a return, you can contact us via Email. If your return is accepted, please let us know
Attached Touch Foil to Glass Video

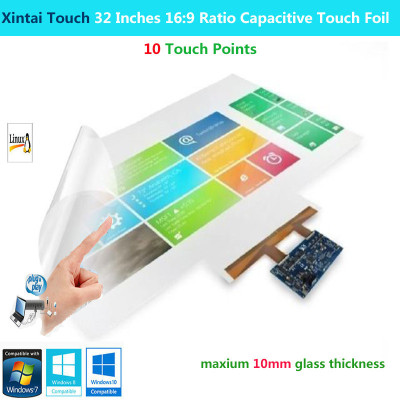

Xintai Touch 32 Inches 10 Touch Points Capacitive Multi Touch Foil/Interactive Touch Film For Touch Kiosk/Table Etc Plug & Play
Specification :
| Item | Parameter |
| Touch points | 2 points to 10 points |
| Size range | 15-120inch |
| Touch deviation | le2mm |
| Sensor quantity | 4224pcs |
| Point rate | 80-120point/ms |
| Power | 0.5W-2W |
| Driver type | Driver free Plug&Play |
| Arm Reject | Support |
| Customize support | Irregular size, irregurar FPC tail |
| Film thickness | le100um |
| Light transmittance | 93% above |
| Supply Voltage | 5V USB |
| Transmission method | USB2.0, USB3.0 |
| Transmission distance | le50m adding USB signal amplifiers etc |
| Safty distance | 2mm Distance between LCD screen and touch film |
| Working Temperature | -20deg to +70deg |
| Working humidity | 0 to 95% |
| Environment light | Whole angle anti-glare |
| Touch support | Click, drag,zoon in, zoom out, rotation |
| Sense distance(glass thickness) | le12mm |
| Calibration way | make calibration automatically |
| System support | Andriod①.Linux②.Windows7/8/8.1/10(32bits/64bits)③ |
| Program level | Standard HID-USB equipment |
| Certification | EN 55022:2010/AC:2011,EN 55024:2010 IEC62321:2008 |
| Remark | ①For Android,open HID-USB, switch off Report Rate Description, input value of Android's VID(Vendor ID) and PID( Product ID) into IC advanced settings. ②Linux support, pls confirm the Linux version first. ③Win 7/8/8.1/10 Home Edition of Windows only supports single touch Multi touch works on Windows Professional/Enterprise/Ultimate Edition |
Product Size DataSheet List:
Applications:
bull POS
bull ATM / Airport
bull Desktop touch monitor
bull Education Display
bull Indoor/outdoor kiosk
bull Ticket machine
bull In-vehicles and transportation
bull Medical instrument
bull Industrial control systems
Warranty:
We offer 1 year free warranty for hardware.
Tax and Duties:
1. For customers from South America Market, we need you provide Tax Number before shipment.
Brazil-CNPJ/CPF, Chile-RUT number, Argentina-CUIT number, Colombia-NIT number, Peru-IVA number, Venezuela-RIF number
2.The goods price is not including the destination tariffs Different coutries have different customs tariffs, it is
buyer's responsibility.
Shipment and Payment:
1.For Payment---------we accept Western Union, TT, Paypal.
2. BY DHL/FEDEX/UPS------(It's commonly Takes 5-7 working days to deliver to destination if everything go well
without customs clearance problem).
3. By EMS --------(normally takes 7-15 working days ------------It's shipping to Russia and Ukaine).
4. By Russia-Line--------(It will take about18-25 days shipping to Russia).
5. In commonly Country (except russia,Ukaine,Brazil)------- below 43 inch (including 43 inch) we will choose DHL to
deliver the package;above 43 inch will choose fedex or ups,please kindly know.
6. Brazil Customer --------
① Brazil customer should provide CPF/CPNJ tax number to us,then shipment can be arranged,It's used for
customs clearance
② Brazil customer should tell us what value should be decalred for customs clearance
As brazil customs clearance problems.
Shipping Method:
We ship in tube package to protected the glass We also can ship it with glass as well. Please Contact us.
1. 1pcs foil + 1pcs usb cable +1pcs controller
2. Without Glass
3. In tube Package Shipping
Facotry Produced and High Quality Guarantee
- Brand Name
- Xintai Touch
- Interface Type
- USB
- Package
- Yes
- Type
- Capacitive
- Products Status
- STOCK
- Model Number
- XT-TF-32
- Display Size
- 32 Inches
