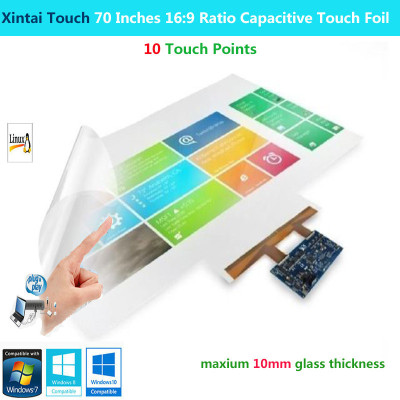

Xintai Touch 70 Inches 16:9 Ratio 10 Touch Points Interactive Capacitive Multi Touch Foil Film Plug & Play
SSL and higher firewall provided the data security
Commonly we use Fedex and UPS shipping out the package Then the package can be delivery soon
To initiate a return, you can contact us via Email. If your return is accepted, please let us know
Attached Touch Foil to Glass Video
Xintai Touch 70 Inches 16:9 Ratio 10 Touch Points Interactive Capacitive Multi Touch Foil Film Plug & Play
Specification :
| Item | Parameter |
| Touch points | 2 points to 10 points |
| Size range | 15-120inch |
| Touch deviation | le2mm |
| Sensor quantity | 4224pcs |
| Point rate | 80-120point/ms |
| Power | 0.5W-2W |
| Driver type | Driver free Plug&Play |
| Arm Reject | Support |
| Customize support | Irregular size, irregurar FPC tail |
| Film thickness | le100um |
| Light transmittance | 93% above |
| Supply Voltage | 5V USB |
| Transmission method | USB2.0, USB3.0 |
| Transmission distance | le50m adding USB signal amplifiers etc |
| Safty distance | 2mm Distance between LCD screen and touch film |
| Working Temperature | -20deg to +70deg |
| Working humidity | 0 to 95% |
| Environment light | Whole angle anti-glare |
| Touch support | Click, drag,zoon in, zoom out, rotation |
| Sense distance(glass thickness) | le12mm |
| Calibration way | make calibration automatically |
| System support | Andriod①.Linux②.Windows7/8/8.1/10(32bits/64bits)③ |
| Program level | Standard HID-USB equipment |
| Certification | EN 55022:2010/AC:2011,EN 55024:2010 IEC62321:2008 |
| Remark | ①For Android,open HID-USB, switch off Report Rate Description, input value of Android's VID(Vendor ID) and PID( Product ID) into IC advanced settings. ②Linux support, pls confirm the Linux version first. ③Win 7/8/8.1/10 Home Edition of Windows only supports single touch Multi touch works on Windows Professional/Enterprise/Ultimate Edition |
Product Size DataSheet List:
Applications:
bull POS
bull ATM / Airport
bull Desktop touch monitor
bull Education Display
bull Indoor/outdoor kiosk
bull Ticket machine
bull In-vehicles and transportation
bull Medical instrument
bull Industrial control systems
Warranty:
We offer 1 year free warranty for hardware.
Tax and Duties:
1. For customers from South America Market, we need you provide Tax Number before shipment.
Brazil-CNPJ/CPF, Chile-RUT number, Argentina-CUIT number, Colombia-NIT number, Peru-IVA number, Venezuela-RIF number
2.The goods price is not including the destination tariffs Different coutries have different customs tariffs, it is
buyer's responsibility.
Shipment and Payment:
1.For Payment---------we accept Western Union, TT, Paypal.
2. BY DHL/FEDEX/UPS------(It's commonly Takes 5-7 working days to deliver to destination if everything go well
without customs clearance problem).
3. By EMS --------(normally takes 7-15 working days ------------It's shipping to Russia and Ukaine).
4. By Russia-Line--------(It will take about18-25 days shipping to Russia).
5. In commonly Country (except russia,Ukaine,Brazil)------- below 43 inch (including 43 inch) we will choose DHL to
deliver the package;above 43 inch will choose fedex or ups,please kindly know.
6. Brazil Customer --------
① Brazil customer should provide CPF/CPNJ tax number to us,then shipment can be arranged,It's used for
customs clearance
② Brazil customer should tell us what value should be decalred for customs clearance
As brazil customs clearance problems.
Shipping Method:
We ship in tube package to protected the glass We also can ship it with glass as well. Please Contact us.
1. 1pcs foil + 1pcs usb cable +1pcs controller
2. Without Glass
3. In tube Package Shipping
Facotry Produced and High Quality Guarantee
- Brand Name
- Xintai Touch
- Interface Type
- USB
- Package
- Yes
- Type
- Capacitive
- Products Status
- STOCK
- Model Number
- XT-TF-70
- Display Size
- 70 Inches
- Item
- 70 inch capacitive touch foil
- Detection Method
- Projected Capacitance technology using horizontal vertical wires
- Screen Sizes
- From: 15" To 120" . Available in 4: 3 & 16: 9 format.
- Position accuracy
- Approximately 3 mm absolute 1 mm relative. No drift
- Alignment
- Software drivers provide a calibration facility
- Sensitivity:
- Functions with non-mertalise single construction glass 12mm thick
- Speed of response:
- Depends upon glass thickness. Typically 50 to 100ms.
- Output:
- RS232C communications to a 9 pin D female or USB Port
- Software Compatibility:
- Windows XP & Vista. Windows7 windows8 Android Linux MAC
- Temperature range:
- Better than -10 to +70
