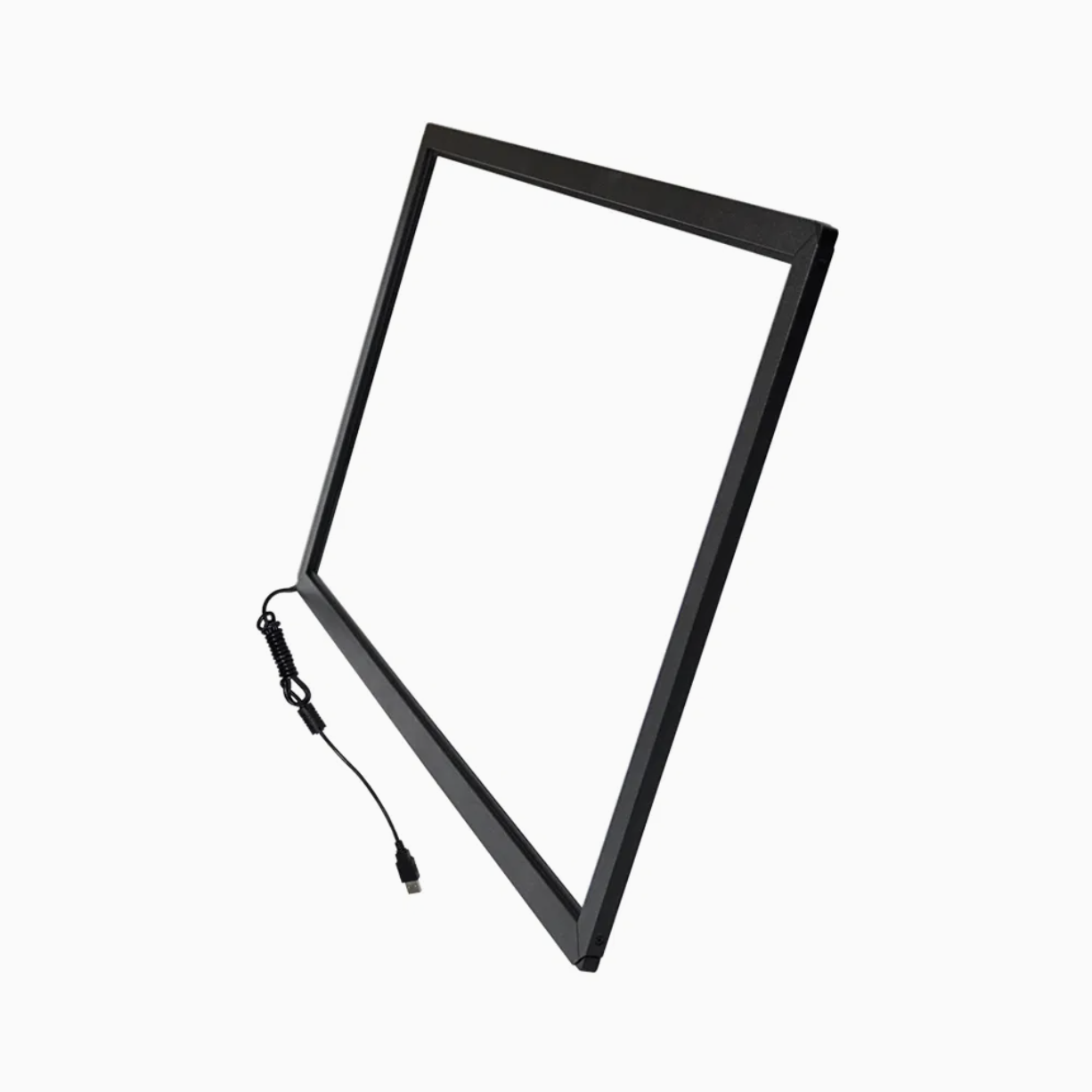

Xintai Touch 32 to 98 Inches 16:9 Ratio IR Touch Frame Panel/Touch Screen Overlay Kit Plug & Play (NO Glass)

Specification :

Active Area (Display Device)		31.5″~ 98''
Housing		Aluminum Alloy
Housing Color		Black
Glass	Standard	NO Glass
	Option	Custom glass is available on request.
Touch Interpolation		32767 (W)×32767 (D)
Response Time		<=15ms
Touch Accuracy		±2mm(over 90% Area)
Touch Input Method		Finger, Finger of gloved hand, Opaque objects
Output Form		Coordinate Value
Touch Durability		Unlimited
Available Object Sizes for Touch		≥Φ7mm
Interface		A -Type USB/M
		TTL Serial Port

Electrical Specification:

Scan Rate	125HZ
Communication	USB2.0 Full Speed
Transmission Rate	12Mbps
PowerSupply Mode	USB
Supply Voltage	DC+5V±5％
Operating Current	<300mA

Storage Conditions：

Storage Temperature	-10℃～40℃
Storage Humidity	30%～70% RH
Storage Time	3 Months

Reliability Testing：

Operating Temperature	-10℃~50℃
Storage Temperature	-20℃~60℃
Humidity	Operating:10%~85%RH, on-condensing
Humidity	Storage:10%~ 90% RH, non-condensing
ESD	EN 6100-4-2 2008: 3 level. 4 KV contact discharge and 8 KV air discharge.
Anti-light Interference	Excellent

Software Specification：

Firmware Upgrade

USB Upgrade: Windows 7, Windows XP

Multi Touch

Windows 7 Ultimate, Windows 7 Professional, Windows 7 Home Premium, Android (need patch in kernel code), Windows 8, Windows 8 Pro, Windows 8 Enterprise

* Performance will be impacted if mentioned systems do not support multi-touch function or have no copyrights. And Windows 8 must be non OEM version.

Single Touch

Windows 7,Windows XP, Vista, Linux, Mac, Android, and WinCE and Chrome

TTL Serial Port Connector：

pin No.	Definition	Description
1	VCC	+5V
2	RXD	Serial（TTL）data receiving
3	TXD	Serial（TTL）data transmitting
4	GND	Ground

Applications：

• POS
• ATM / Airport
• Desktop touch monitor
• Education Display
• Indoor/outdoor kiosk
• Ticket machine

• In-vehicles and transportation

• Medical instrument
• Industrial control systems

Warranty:

We offer 1 year free warranty for hardware.

Tax and Duties:

1、 For customers from South America Market, we need you provide Tax Number before shipment.

Brazil-CNPJ/CPF, Chile-RUT number, Argentina-CUIT number, Colombia-NIT number, Peru-IVA number, Venezuela-RIF number

2、The goods will be delcared with low value on the invoice, purpose is to reduce your tariffs, but our price is not

including the destination tariffs Different coutries have different customs tariffs, it is buyer's responsibility.

Shipment and Payment:

1、For Payment---------we accept Western Union, TT, Paypal.

2、 BY DHL/FEDEX/UPS------(It's commonly Takes 5-7 working days to deliver to destination if everything go well

without customs clearance problem).

3. By EMS --------(normally takes 7-15 working days ------------It's shipping to Russia and Ukaine).

4. By Russia-Line--------(It will take about18-25 days shipping to Russia).

5. In commonly Country (except russia,Ukaine,Brazil)------- below 43 inch (including 43 inch) we will choose DHL to

deliver the package;above 43 inch will choose fedex or ups,please kindly know.

6. Brazil Customer --------

① Brazil customer should provide CPF/CPNJ tax number to us,then shipment can be arranged,It's used for

customs clearance

② Brazil customer should tell us what value should be decalred for customs clearance

As brazil customs clearance problems.

Shipping Method:

We ship in tube package to save shipping cost. We also can ship it with glass as well. Contact us.

1. Disassembly

2. Without Glass

3. In tube Shipping

Facotry Produced and High Quality Guarantee
